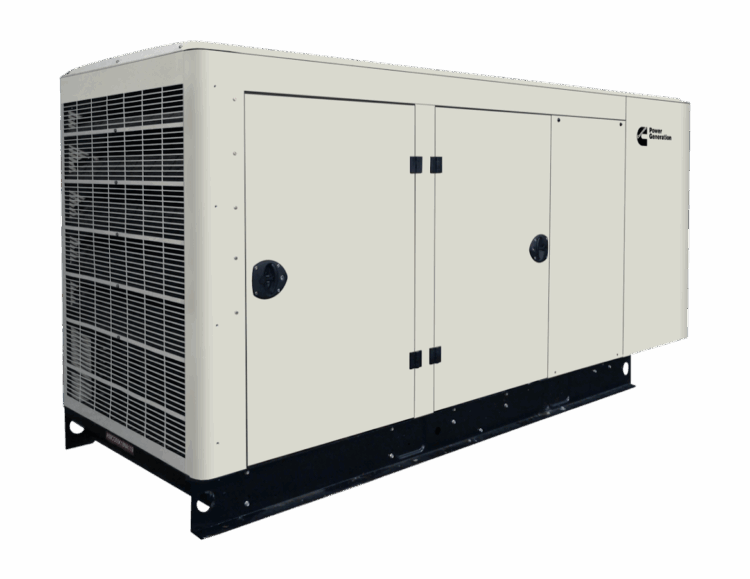

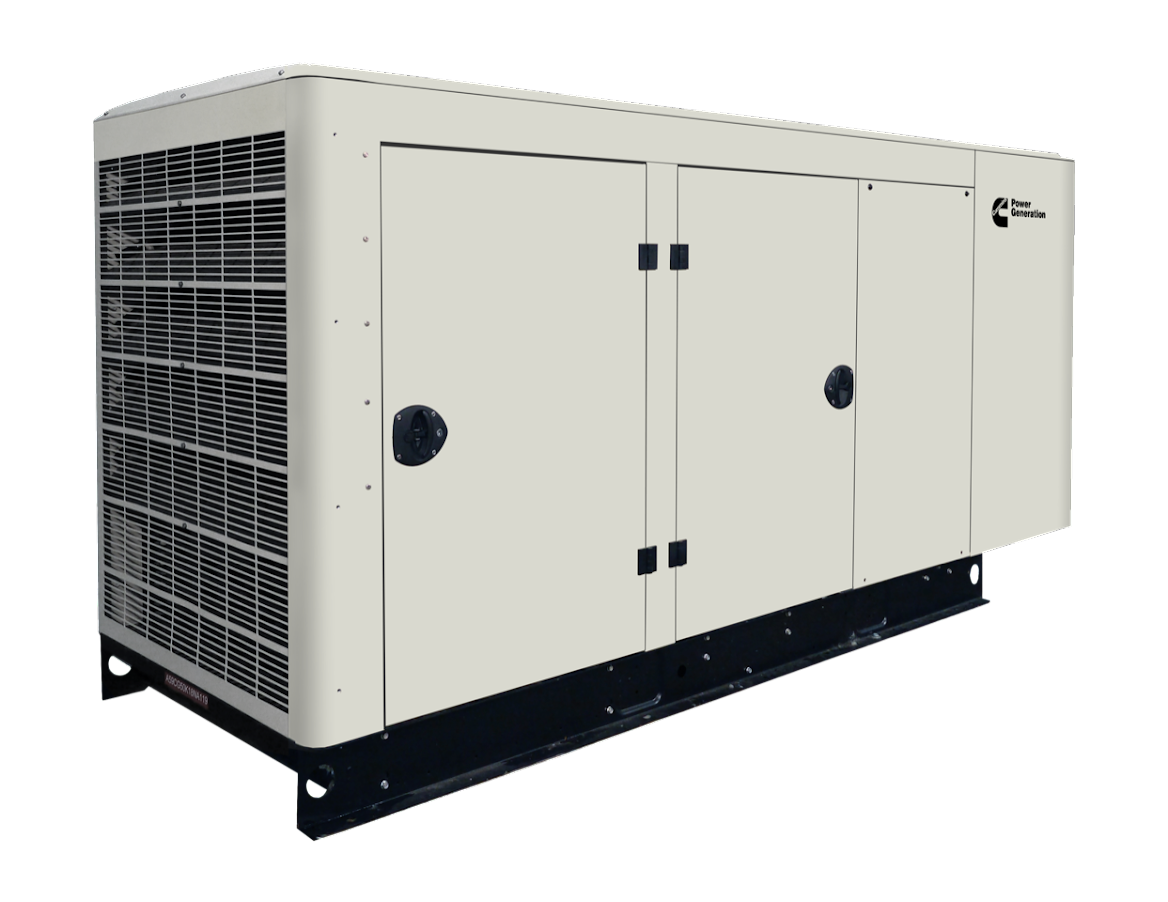

Cummins 20kW Diesel Generator

The Cummins 20kW Diesel generator is fully integrated power generation systems providing optimum performance, reliability, and versatility for stationary Standby applications. With the addition of the basic fuel tank, the price comes to $16,318.00.

Features of the Cummins 20kW Diesel Generator

Cooling system – Standard cooling package provides reliable running at up to 50 °C (122 °F) ambient temperature.

Enclosures – The aesthetically appealing enclosure incorporates special designs that deliver one of the quietest generators of its kind. Aluminum material plus durable powder coat paint provides the best anti-corrosion performance. The Cummins 20kW diesel generator enclosure has been evaluated to withstand 180 MPH wind loads in accordance with ASCE7-10. The intelligent design has removable panels and service doors to provide easy access for service and maintenance.

Fuel tanks – Two dual wall sub-base fuel tank series are offered as optional features, providing economical and flexible solutions to meet extensive code requirements on diesel fuel tanks.

NFPA – The Cummins 20kW diesel generator set accepts full rated load in a single step in accordance with NFPA 110 for Level 1 systems.

Warranty and service – It is backed by a comprehensive warranty and worldwide distributor network.

Kubota heavy-duty engine – Rugged 4-cycle, liquid-cooled, industrial diesel engine delivers reliable power, low emissions and fast response to load changes.

Alternator – Several alternator sizes offer selectable motor starting capability with low reactance 2/3 pitch windings, low waveform distortion with non-linear loads and fault clearing short-circuit capability.

Control system – The PowerCommand® 1.1 electronic control is standard equipment and provides total generator set system integration including automatic remote starting/stopping, precise frequency and voltage regulation, alarm and status message display, output metering, auto-shutdown at fault detection and NFPA 110 Level 1 compliance.
